LOADING BAY SOLUTIONS

Dock Levelers

Bridge the gap between loading dock and vehicle with precision-engineered leveling systems designed for safety, efficiency, and heavy-duty performance.

Get a Quote

Safe, Smooth Transitions at Every Dock

Dock levelers compensate for the height difference between the warehouse floor and the truck bed, enabling safe and efficient movement of goods with forklifts and pallet trucks. Whether hydraulic, mechanical, or edge-mounted, the right leveler keeps your operation running without interruption.

VARIANT 01

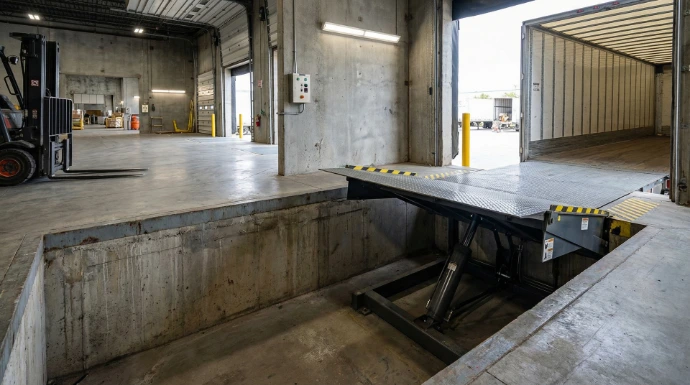

Hydraulic Dock Levelers

Fully powered leveling platforms that raise, extend, and lower at the push of a button. Hydraulic systems deliver the highest load capacities and the smoothest operation for intensive logistics environments.

  • Load capacity up to 15 tonnes
  • Push-button operation for maximum ease
  • Built-in safety lip auto-extension
  • Ideal for high-frequency docking stations

VARIANT 02

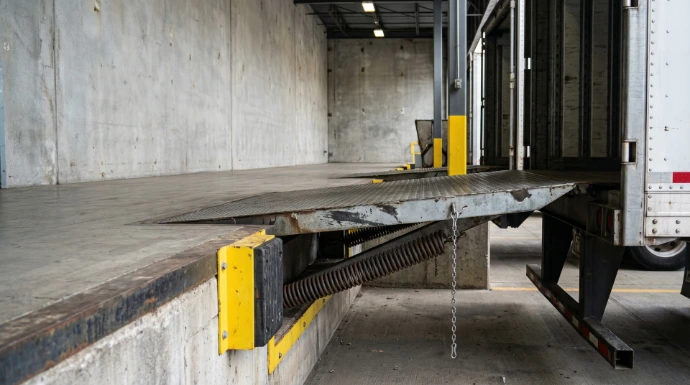

Mechanical Dock Levelers

Spring-assisted platforms activated manually by pulling a release chain. A reliable, cost-effective solution for facilities with moderate traffic and standard load requirements.

  • Spring-assisted for easy manual activation
  • Load capacity up to 9 tonnes
  • No electrical or hydraulic systems required
  • Low maintenance and long service life

VARIANT 03

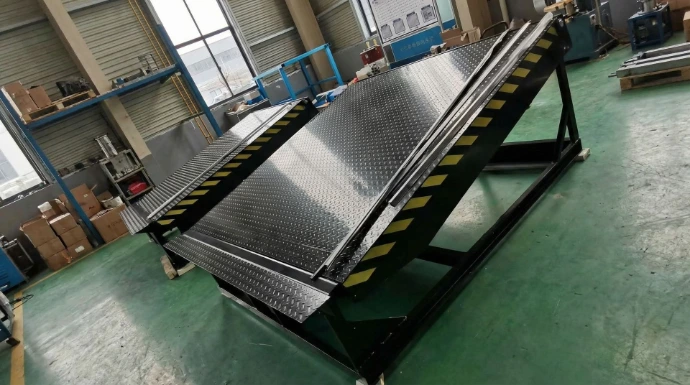

Edge-of-Dock Levelers

Compact, surface-mounted units that attach directly to the dock face. Perfect for facilities where a pit-mounted leveler is not feasible or where lighter-duty leveling is sufficient.

  • No pit required — surface-mounted installation
  • Load capacity up to 6 tonnes
  • Compact design for limited-space docks
  • Quick and affordable installation
Edge-of-Dock Leveler

VARIANT 04

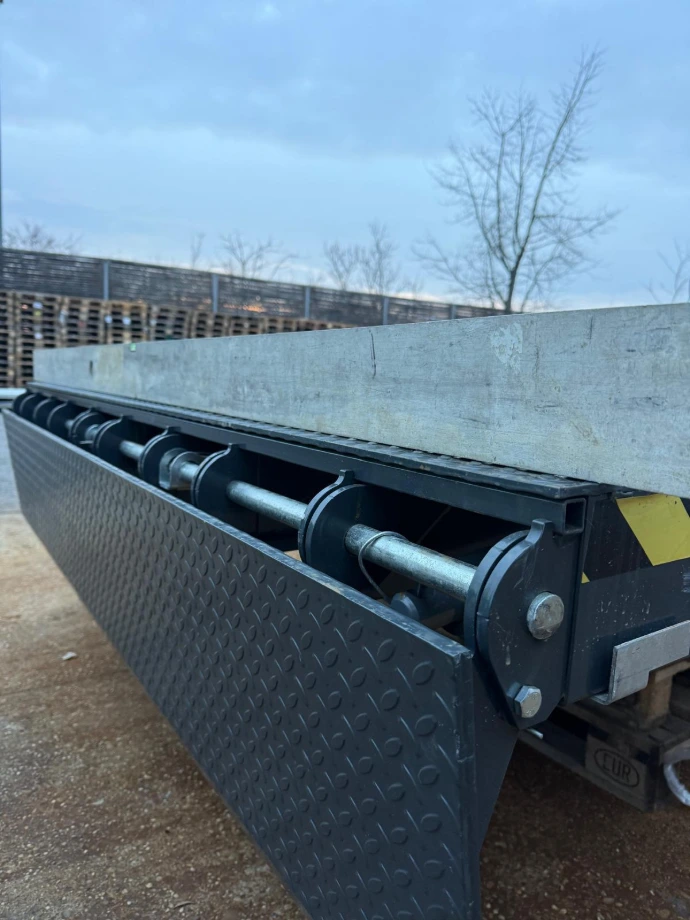

Telescopic Lip Levelers

Advanced levelers with an extending lip that reaches deep into the truck bed, providing maximum overlap and a stable, safe transition. The telescopic mechanism ensures seamless forklift crossing even with significant height differences.

  • Extended lip reach up to 1,000 mm
  • Handles large height differences (+/- 400 mm)
  • Smooth crossing for heavy forklift loads
  • Integrated safety features and sensors
Telescopic Lip Leveler

Technical Specifications

Specification Hydraulic Mechanical Edge-of-Dock Telescopic Lip
Load Capacity Up to 15 tonnes Up to 9 tonnes Up to 6 tonnes Up to 12 tonnes
Leveling Range ±400 mm ±300 mm ±150 mm ±400 mm
Lip Length 400 mm 400 mm 250 mm Up to 1,000 mm
Operation Push-button Pull-chain manual Manual Hydraulic / Electric
Safety Features Auto lip, toe guards Safety maintenance prop Safety lip lock Sensors, auto-stop

Why Choose Our Dock Levelers?

Worker Safety

Eliminate dangerous gaps and height differences between dock and trailer. Built-in safety features protect operators during every loading cycle.

Operational Efficiency

Faster truck turnaround times and smoother material flow. Hydraulic and telescopic options minimize manual effort and reduce loading cycle duration.

Versatile Solutions

From compact edge-of-dock units to heavy-duty hydraulic platforms, there is a leveler suited to every dock configuration and traffic volume.

Ready to Upgrade Your Loading Dock?

Let our specialists help you choose the right dock leveler based on your load requirements, traffic patterns, and facility layout.

Request a Consultation
