FIRE SAFETY
Smoke & Fire Curtains
Certified fire-rated and smoke containment curtain systems that deploy automatically to protect lives, property, and escape routes in the event of a fire.
Get a QuoteInvisible Protection, Instant Response
Smoke and fire curtains are concealed within the ceiling during normal operation and deploy automatically when triggered by the fire alarm system. They compartmentalize buildings, contain smoke spread, protect escape corridors, and can replace traditional fire-rated walls and doors — giving architects and engineers far greater design flexibility.
TYPE 01

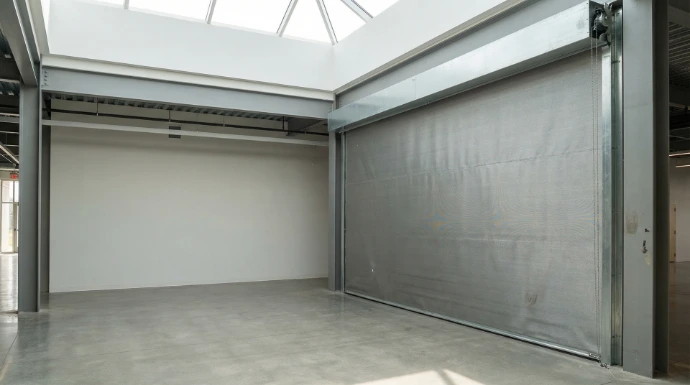

Fixed Fire Curtains (EN 16034)
Fire-rated curtain barriers that descend to create a complete fire compartment. Tested and certified to EN 16034 with ratings from EW30 to EW120, they provide the same fire separation as masonry walls while remaining completely hidden when not deployed.
- Fire ratings: EW30, EW60, EW90, EW120
- Gravity-fail-safe descent mechanism
- Concealed headbox installation
- Replaces fire-rated walls and doors
TYPE 02
Automatic Smoke Curtains (EN 12101-1)
Smoke containment barriers designed to channel and contain smoke within defined zones, keeping escape routes clear and giving occupants more time to evacuate safely. They work in conjunction with smoke extraction systems to manage smoke movement.
- Certified to EN 12101-1 (smoke barriers)
- Automatic deployment on fire alarm
- Creates smoke reservoirs and channels
- Keeps escape corridors clear of smoke
Technical Specifications
| Specification | Fire Curtains | Smoke Curtains |
|---|---|---|
| Certification | EN 16034 (CE marked) | EN 12101-1 (CE marked) |
| Fire Rating | EW30 – EW120 | D classification (smoke only) |
| Fabric | Fire-resistant woven glass fiber | Smoke-resistant technical fabric |
| Activation | Fire alarm / Manual release | Fire alarm / Smoke detection |
| Descent | Gravity fail-safe | Gravity fail-safe |
| Max Span | Up to 30,000 mm | Up to 40,000 mm |
Why Choose Our Fire & Smoke Curtains?
Life Safety
Contain smoke and fire spread to protect evacuation routes, giving building occupants critical time to reach safety.
Property Protection
Fire compartmentation limits damage to the area of origin, protecting the rest of the building and its contents from fire and smoke damage.
Code Compliance
Fully certified to European standards, our curtains meet the requirements of building codes, fire engineers, and insurance providers.
Need Fire Safety Solutions for Your Building?
Our fire protection specialists work with architects, engineers, and building owners to design compliant smoke and fire curtain installations.
Request a Consultation
