Certified Smoke Ventilation for Building Safety
Our heat and smoke venting domes are engineered to meet EN 12101-2 requirements, providing reliable natural or powered smoke extraction that keeps escape routes clear and assists firefighting operations. Available in a range of sizes and configurations to suit any commercial or industrial roof.
VARIANT 01

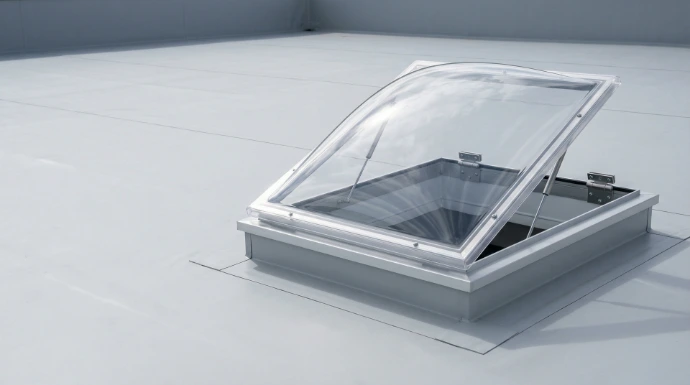

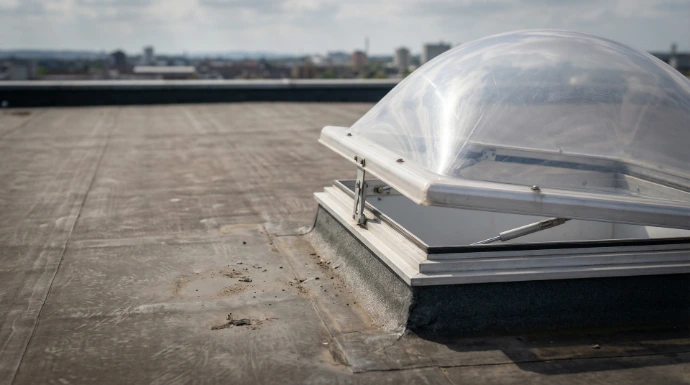

Natural Ventilation Domes
Gravity-operated smoke vents that open automatically during fire events, using fusible links or pneumatic actuators. These dome-shaped units harness the natural buoyancy of hot smoke to exhaust it efficiently without requiring electrical power.
- Thermally activated fusible link release at 68°C or 93°C
- Polycarbonate or acrylic dome glazing options
- EN 12101-2 certified aerodynamic free area
- No power supply required for emergency operation
VARIANT 02
Powered Smoke Vents
Electrically operated venting systems with integrated motors that provide controlled opening in response to fire alarm signals. Ideal for buildings requiring precise ventilation control and integration with building management systems.
- 24V DC motor with battery backup system
- Integration with fire alarm and BMS systems
- Adjustable opening angles for daily ventilation
- Remote monitoring and status indication
VARIANT 03
Combination Systems
Dual-purpose installations that combine daily natural ventilation with emergency smoke extraction capabilities. These systems provide year-round energy savings through passive ventilation while maintaining full fire safety compliance.
- Dual-mode operation: daily ventilation and emergency smoke venting
- Rain sensors for automatic closing in wet weather
- Energy savings through natural cooling and air exchange
- Wind speed monitoring with auto-retract protection
Technical Specifications
Why Choose Our Venting Domes?
Life Safety Compliance
Fully certified smoke ventilation that keeps escape routes clear and supports firefighter access during emergencies.
Property Protection
Rapid heat and smoke extraction reduces structural damage, lowers insurance risk, and minimizes post-fire recovery costs.
Regulatory Compliance
Engineered to meet building regulations and insurance requirements, with full documentation and certification packages.
